1. How is discrete rate calculated?

Answer:

Dispersion rate = standard deviation of string current/average value of string current * 100%.

2. Why the inverter is generating power normally but dispersion rate analysis is not available?

Analysis:

1. Make sure that the date selected is correct.
2. We only calculate the power generation data between 10:00am and 14:00pm, so if the inverter power-up time is earlier than 10:00am or later than 14:00pm, then the data of that day will not be involved in the calculation. Please check the discrete rate analysis in the corresponding time.

3. What is IV curve?

Answer:

Current-voltage curve -- the shape of the IV curve is to judge the quality of the Solar panel under test.

4. How to scan and check IV curve diagnosis?

Answer:

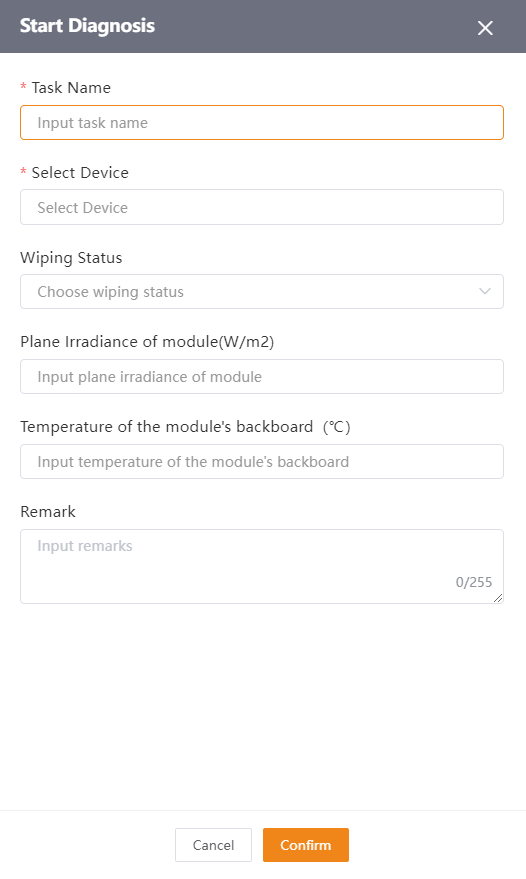

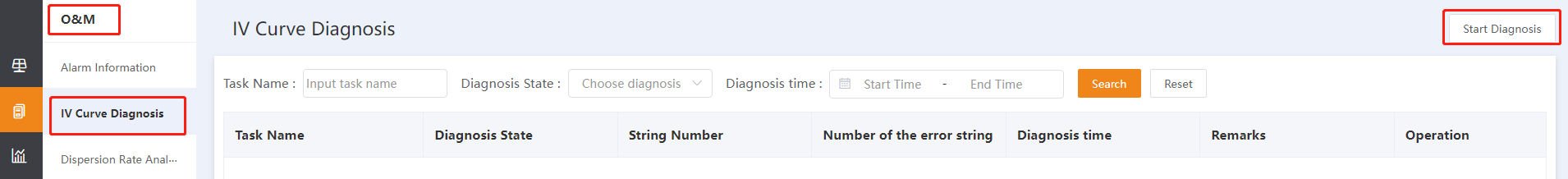

  1. Go to O&M -- IV Curve Diagnosis -- Start Diagnosis, and fill in the task information.
    IV Curve DiagnosisIV Curve Diagnosis

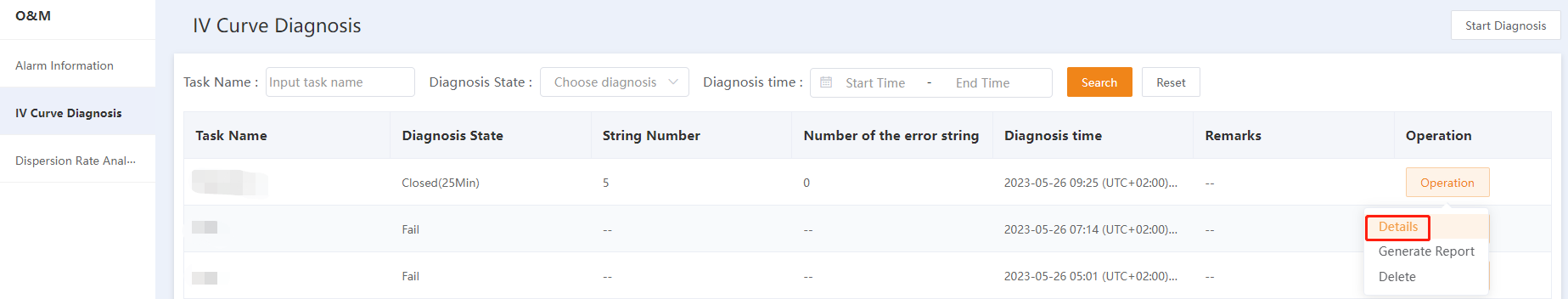

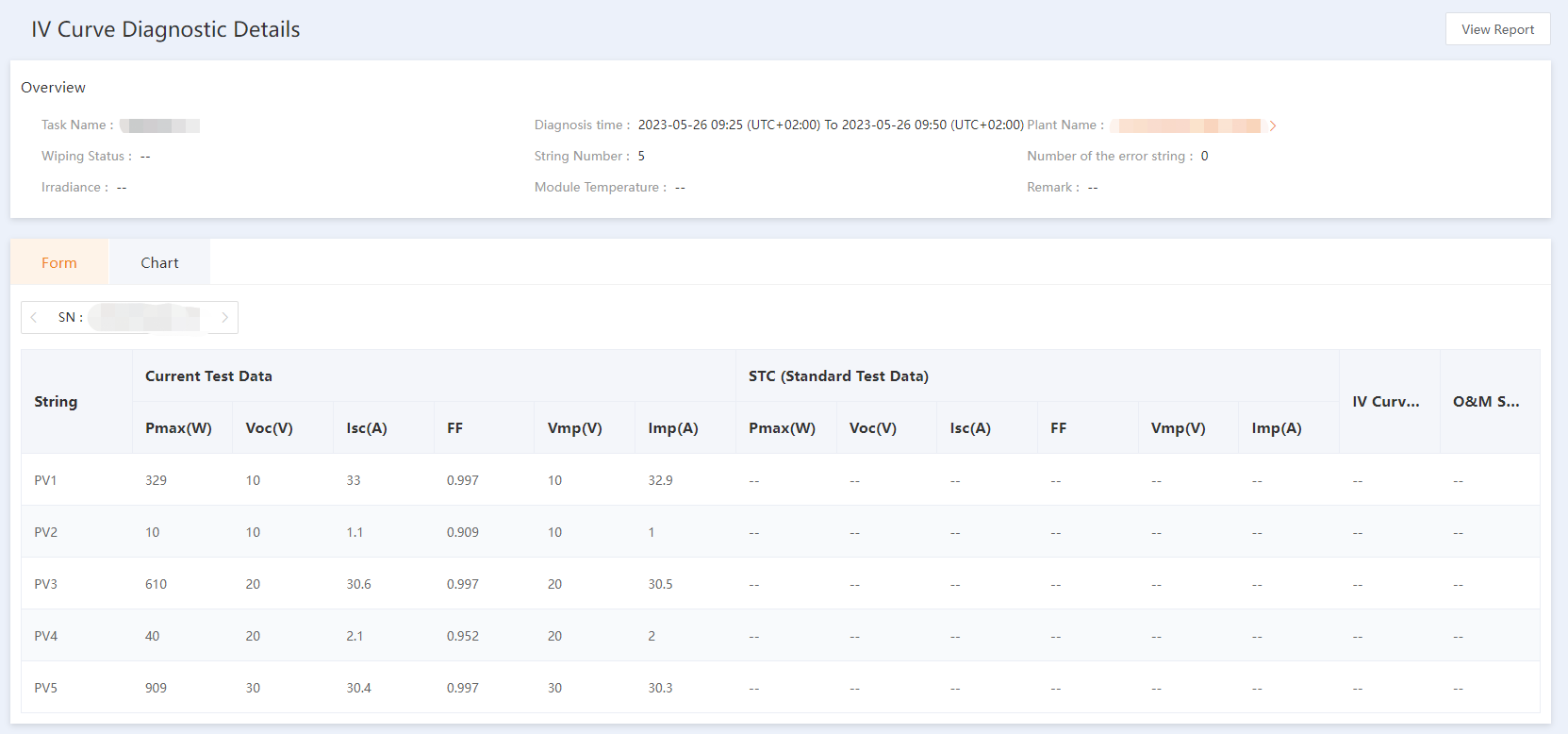

    You can check the task details when it's complete.
    IV Curve DiagnosisIV Curve Diagnosis

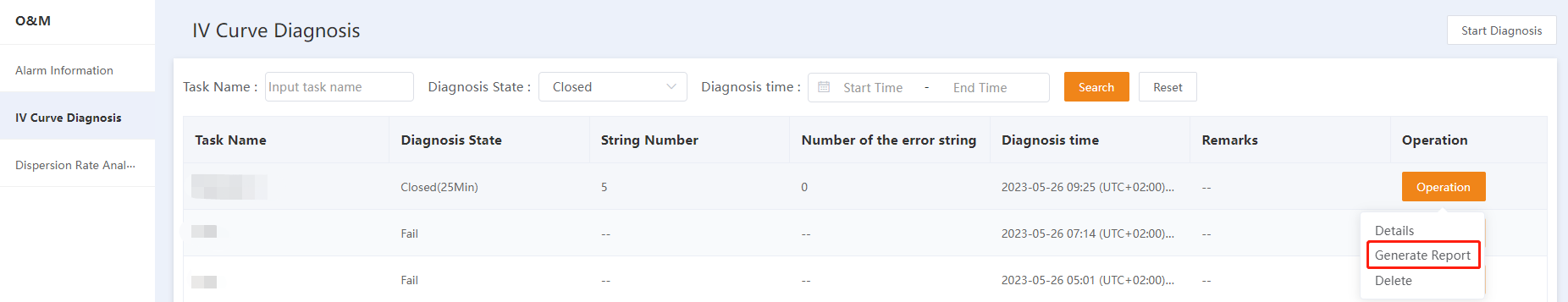

    Report can be generated as well, as shown below: IV Curve Diagnosis

5. Why are some alarm intervals shown as "1d24h" but not "2d" straightforward?

Analysis: If it's not reaching the complete 24 hours like 23h 55mins, it will be displayed as "24h" approximately. So in this case, when the alarm duration reaches another 24 hours for a whole day, it will become "2d" then.
